Chip Wringer |
KineSpin Fluid Extractors provide rapid acceleration
and high "G" forces to effectively and
efficiently extract all recoverable fluids in a short
cycle providing maximum fluid recovery.
Also offering programmable cycles with PLC and
touch screen controls. Proven rugged
design with direct motion drive to interior
components.
|
 |
 |
 |
 |
| Oily Chips |
Dry Chips |
Reclaimed Oil |
| Machine Capacities |
Previous
Unit
Number |
New Unit
Number |
Product
Name |
Load
Weight
Capacity |
Load
Liquid
Capacity |
Max.
RPM |
Max. Gs |
Wringer Basket
Size |
| 301 |
|
Chip wringer |
75 lbs. |
5 gal. |
675/1,200 |
327 |
16" dia. x 9" dp. |
| 601 |
|
Chip wringer |
130 lbs. |
10 gal. |
600/1,100 |
343 |
20.5" dia. x 15" dp. |
| Contact us to learn more |

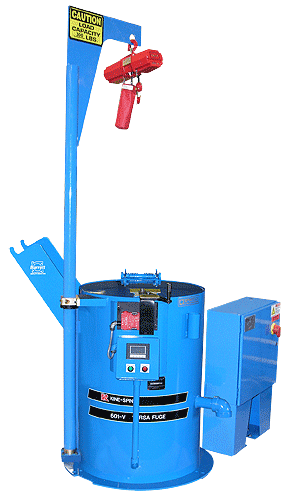

| Versa Fuge - Does The Whole Job |
|
- Clean and dry bolts, nuts and related parts while
collecting any coolant
- Separate chips from coolant
- Coat parts with controlled film of rust preventative
- Wring out sludge from grinding swarf
- Separate cooling and lubrication fluids
- Handles batches up to 130 lbs.
- Processes are developed and stored in touch
screen P.C.
- Provides cleaning forces up to 343 G's
- Individual processes ~ 5 min. typical

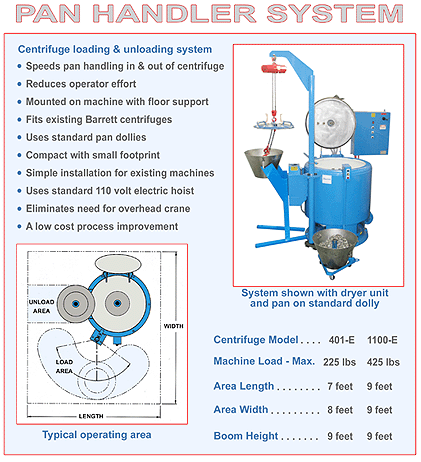

- Built in hoist pan system facilitates scheduling
- Small foot print allows installation where fasteners
are produced.
|
| Clean, Dry and extract coolants all with one machine |
|
